Arc Flash Analysis
Labeling Requirements from NFPA 70E 130.5(H) ® (NFPA 70E, 2024)
(C) Equipment Labeling. Electrical equipment such as switchboards, panelboards, industrial control panels, meter socket enclosures, and motor control centers that are in other than dwelling units, and are likely to require examination, adjustment, servicing, or maintenance while energized, shall be field marked with a label containing all the following information:
(1) Nominal system voltage.
(2) Arc flash boundary
(3) At least one of the following:
a. Available incident energy and the corresponding working distance (analysis method).
b. Minimum arc rating of clothing.
c. Site-Specific level of PPE.
(C) Equipment Labeling. Electrical equipment such as switchboards, panelboards, industrial control panels, meter socket enclosures, and motor control centers that are in other than dwelling units, and are likely to require examination, adjustment, servicing, or maintenance while energized, shall be field marked with a label containing all the following information:
(1) Nominal system voltage.
(2) Arc flash boundary
(3) At least one of the following:
a. Available incident energy and the corresponding working distance (analysis method).
b. Minimum arc rating of clothing.
c. Site-Specific level of PPE.
Incident Energy Analysis (Arc Flash Hazard Analysis)
SKM PTW® Software
Why Choose SKM? Quite simply, Power Tools for Windows is the Gold Standard to which all other software packages must be compared. No other software can match SKM Power Tools for project analysis flexibility, speed, or database integration. And with over 35,000 users worldwide, no other software package has the breadth of support from the professionals in the engineering community of SKM Power Tools for Windows. From industry leaders like Cutler-Hammer, GE, Square-D and Siemens Westinghouse, to independent contractors and leaders in every industry, Power Tools is the application of choice when it comes to electrical engineering software. Visit SKM on the web at www.skm.com
You may contact us and request a detailed specification for your facility. This specification is free, and will explain in detail the services that will be provided for your arc flash analysis and labeling.
SKM PTW® Software
Why Choose SKM? Quite simply, Power Tools for Windows is the Gold Standard to which all other software packages must be compared. No other software can match SKM Power Tools for project analysis flexibility, speed, or database integration. And with over 35,000 users worldwide, no other software package has the breadth of support from the professionals in the engineering community of SKM Power Tools for Windows. From industry leaders like Cutler-Hammer, GE, Square-D and Siemens Westinghouse, to independent contractors and leaders in every industry, Power Tools is the application of choice when it comes to electrical engineering software. Visit SKM on the web at www.skm.com
You may contact us and request a detailed specification for your facility. This specification is free, and will explain in detail the services that will be provided for your arc flash analysis and labeling.

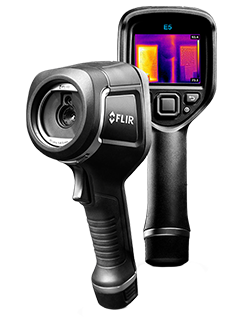

Infrared Thermography
IR Thermography
Infrared Thermography is a powerful form of non-destructive testing (NDT) widely used in predictive maintenance programs. By detecting abnormal heat signatures caused by loose connections, overloaded circuits, or failing components, IR evaluations help identify potential issues before they lead to costly equipment failures or unplanned downtime.
Beyond early problem detection, regularly scheduled IR inspections help meet insurance requirements, support compliance documentation, and may even contribute to lower premiums. This proactive approach not only protects your assets but also enhances overall electrical system reliability and safety.
NFPA 70B Table 9.2.2 Maintenance Intervals
All equipment operating under Condition 1 or 2 should be tested at intervals not exceeding 12 months.
Routine infrared inspections of energized electrical systems should be performed annually prior to shutdown. More frequent infrared inspections, for example, quarterly or semi-annually, should be performed where warranted by loss experience, installation of new electrical equipment, or changes in environmental, operational, or load conditions.
Your evaluation will be performed by a Certified Level III, Master Thermographer
Infrared Thermography is a powerful form of non-destructive testing (NDT) widely used in predictive maintenance programs. By detecting abnormal heat signatures caused by loose connections, overloaded circuits, or failing components, IR evaluations help identify potential issues before they lead to costly equipment failures or unplanned downtime.
Beyond early problem detection, regularly scheduled IR inspections help meet insurance requirements, support compliance documentation, and may even contribute to lower premiums. This proactive approach not only protects your assets but also enhances overall electrical system reliability and safety.
NFPA 70B Table 9.2.2 Maintenance Intervals
All equipment operating under Condition 1 or 2 should be tested at intervals not exceeding 12 months.
Routine infrared inspections of energized electrical systems should be performed annually prior to shutdown. More frequent infrared inspections, for example, quarterly or semi-annually, should be performed where warranted by loss experience, installation of new electrical equipment, or changes in environmental, operational, or load conditions.
Your evaluation will be performed by a Certified Level III, Master Thermographer

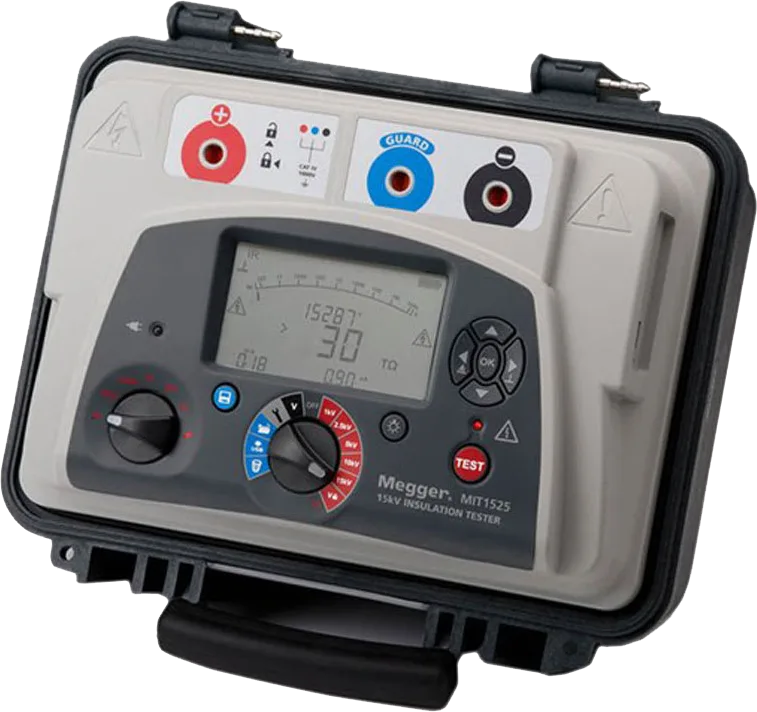

Megger Testing
Testing the integrity of wire insulation is normally needed after a fire, flood or certain new installations in order to determine that the wiring is safe for energization. Inspecting authorities and utility companies may require proof of satisfactory insulation resistance measurements in order to activate a service. We provide Megger Testing for wiring possibly damaged by fire or flood to determine if it is either acceptable “as is” or “must be replaced”. Tests are done according to published standards to determine “PASS” or “FAIL”.
